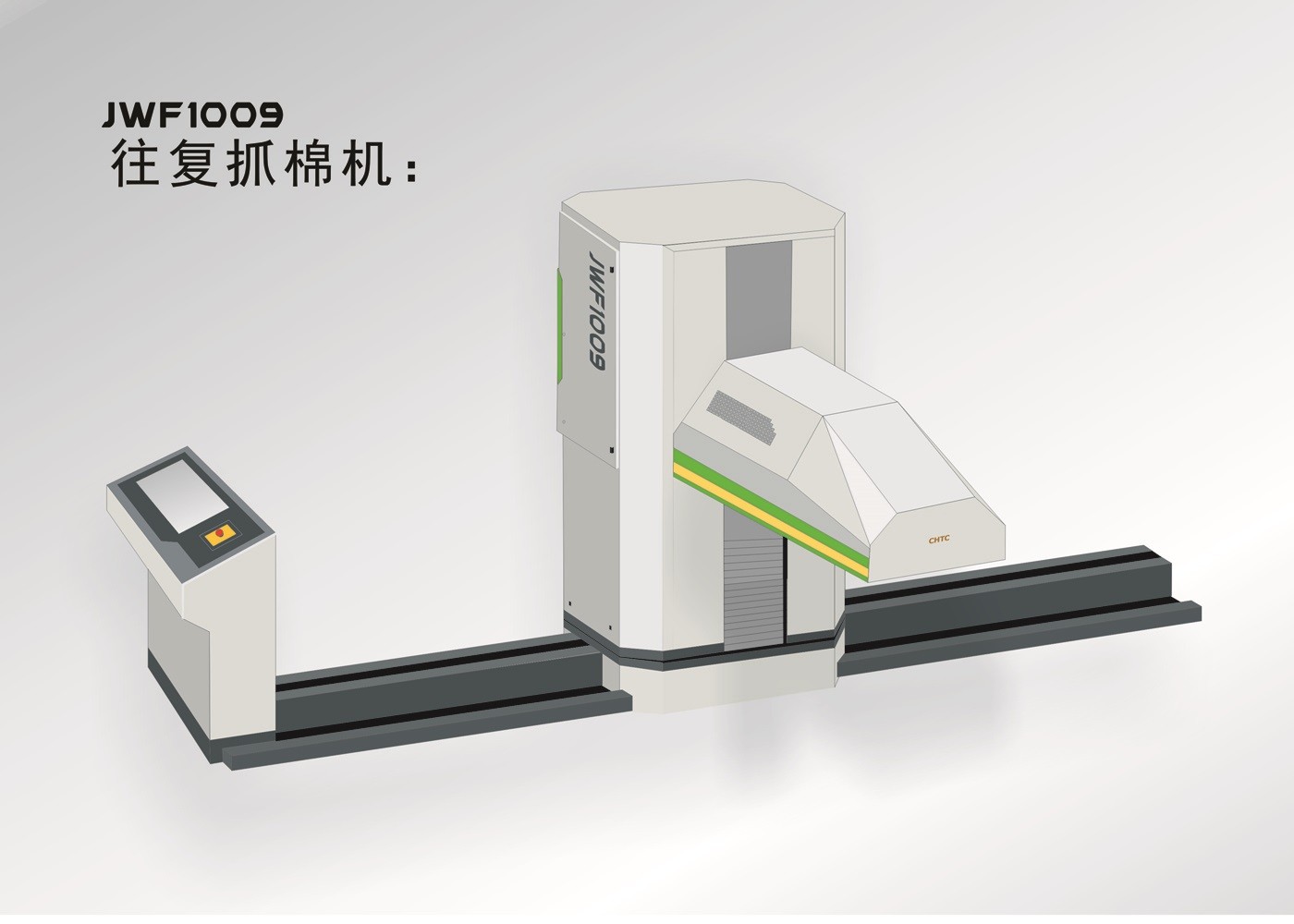

JWF1009 SERIES RECIPROCATING BALE PLUCKER

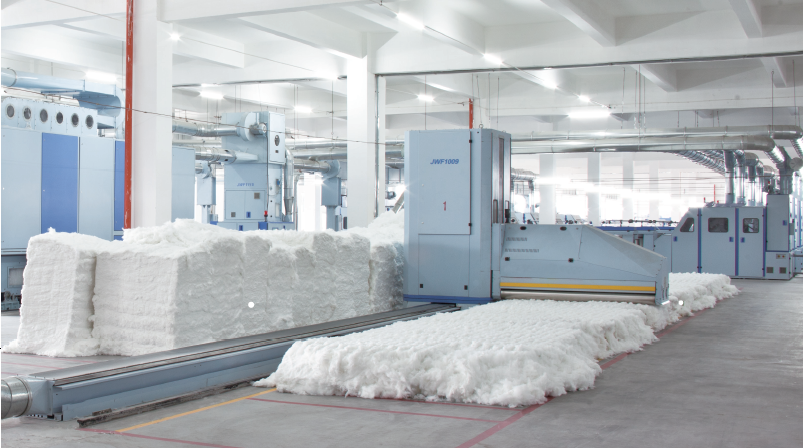

JWF1009 series bale plucker as the first process of blow room and card is suitable to each kind of cotton and chemical, viscose fiber length less than 76mm. The pluck arm, mounted with two beaters, can lift and revolve 180 . The pluck arm moved to and back to pluck fiber above bale. The fiber plucked are sucked into the front feeder by air current through transport duct for further process.
Main Feature
Bales can be placed in two sides. The machine can pluck 1 to 3 group bale with different height and density. Meet the demand for kinds of yarn at the same time.
Tower can revolve 180°.
It is designed with two plucking rollers and two detecting rollers.
With different working width of milling there are 17,23 plucking knives and 102,138 tips on each plucking roller; while plucking roller revolving,it make even distributed plucking line. The position of knife tip and flap can be adjusted to meet every requirement.
Automatic plucking controlled by micro-computer.
|
Working width(mm) Production(kg/h) Effective plucking width(mm) A(mm) |
2300 1500 2300 6362 |
1700 1000 1700 5162 |
Specitications
|
Milling depth(mm) Basic length of machine(mm) Maximum bale height(mm) Pluck roller Total power(kW) Net weight(kg) |
0.1〜20(adjustable) 20400 Maximum length 52000 1600 Control by pulley or inverter 7.5 7000 |
